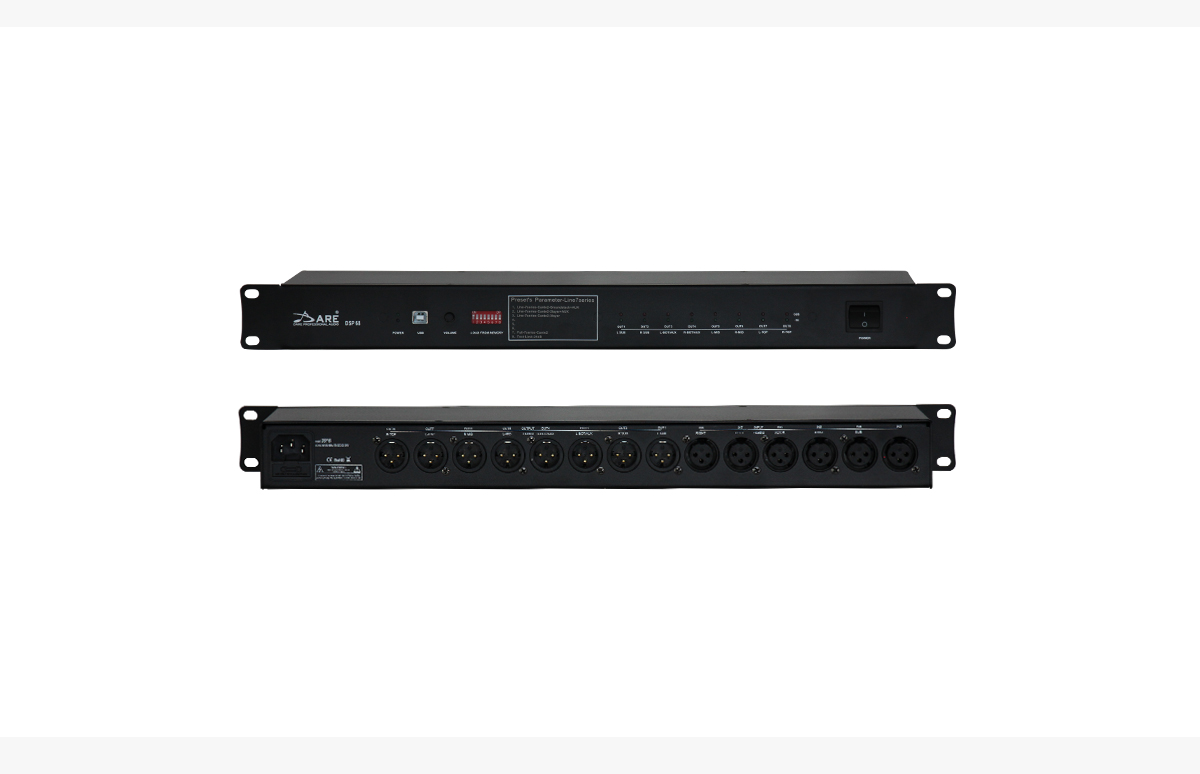

DSP68 / CT88


6x8 Audio Processor With Wireless Audio Transmission

· DSP68 supports 6CH analog input and 8CH analog output with all                  processing and routing function.

· On the internal architecture, any channels of 6 input can be                              selected for mixing,8 DIP switches can fast preset without                                connecting to a computer for debugging.

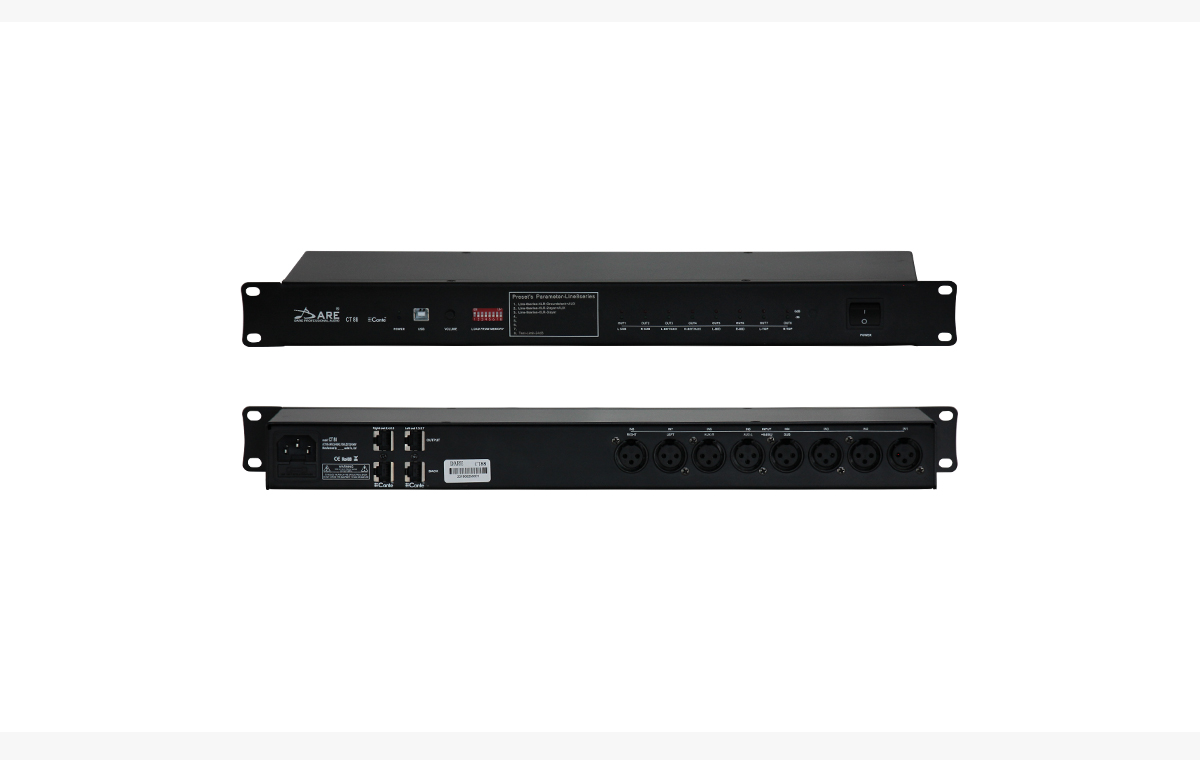

8x8 Audio Processor With CANTE Audio Transmission Protocol

· CT88 supports 8CH analog and Cante outputs.

· On the internal architecture, any channels of 6 input can be selected for          mixing, remotely control the power amplifier of Cante speakers , 8 DIP            switches can fast preset   without connecting to a computer for debugging.

· Bulit in DSP signal processing(gain, EQ, compressor, and delay) .





ADC/DAC


Sample Rate/quantization


Input/Output method


Dynamic Range


Frequency response







Performance







Electric Connection


Input impedance


Max Output level






Electric Connection


Dynamic range


THD


Frequency Response


Crosstalk


Output impedance


Max output level






PC control interface


Power consumption


Weight


Demension









Specifications
Digital signal processor
Analog input
Analog output
User Interface

24kHz/96bit separate ADC/DAC


Differential


TYP>=112dB


TYP<0.5dB






48bit Dual-core float







6XLR connectors at rear panel

20kΩ

+8dBu(2volts)











8XLR connectors at rear panel


112dB


-90dB(0.003%)@1KHz,+12dBV













+0/-0.5dB,20Hz to 20kHz


-90dB,20Hz to 20kHz


50Ω















+8dBu (2volts)













With PC software

<15W

3KG

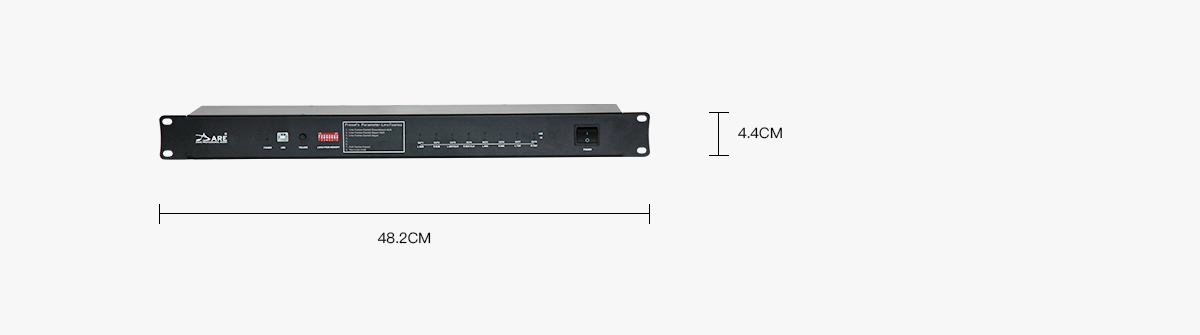

48.2*16.5*4.4(cm)











Size
