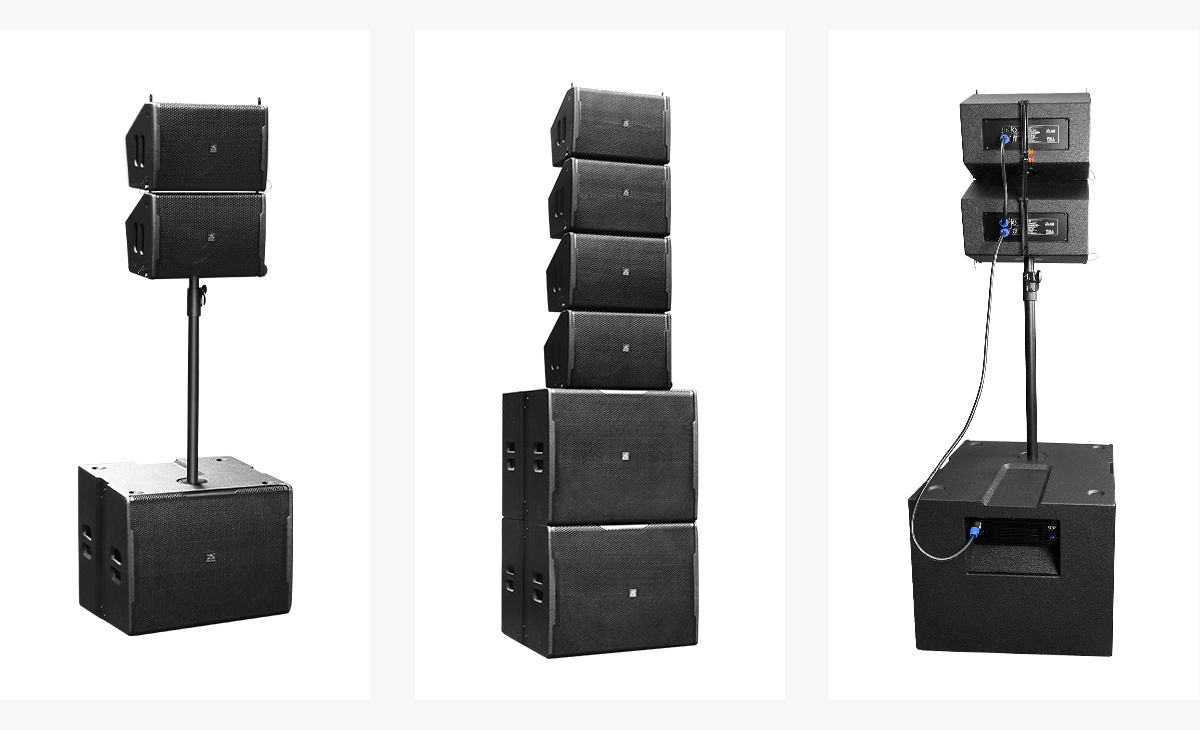

Features

· Short distance active line array speaker. Tiny size but high efficiency，easy installation.

· Each T810 speaker has one high efficiency 10inch LF-Driver and two 1inch HF-Drivers.Total power is 1000W.

· Input voltage: 90-260V Frequency: 50/60Hz.

· 100 deg. Horizontal coverage,   wider sound field and audience area.

· 15 deg. Vertical waveguide reduce the unnecessary sound reflex.

Model

Driver (inch)

DC-Impedance

Freq.response (HZ/-6db)

Power consumption (W）

Peak Voltage (Vp）

Peak Current (Ap）

Peak power (W)

Sensitivity (db/m.w)

Maximum SPL (db)

Coverage (H°xV°）

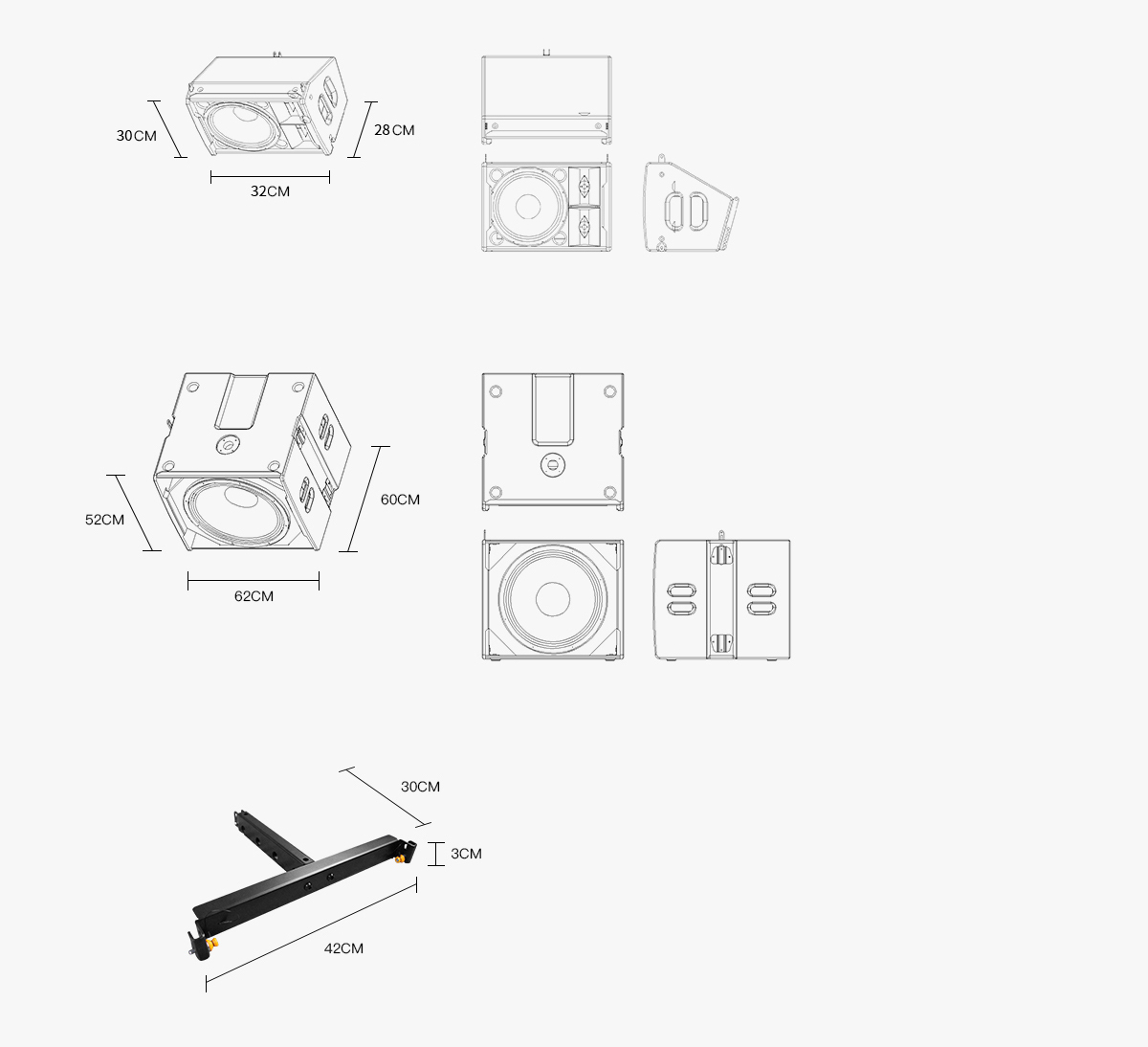

Size (cm)

N.W.(kg)

9.6 Ohm　

70-22k

250

100

10

1000

98

127-139

110x15

42x30x32

12/10(Nd)

9.6 Ohm　

25-200

600

200

20

2400

100

133

--

62x52x60

35/32(Nd)

LF:1x10"

HF:2x1"

1x18"

TL810

TL818
