Features
▪ 48-bit dual-core high-speed DSP; Independent high-perfor-mance AADC&DAC 24-bit/48kHz sampling 12-channel input,noise suppression,source selection 16-channel output, input proportional mixing, crossover,8x11-section parametric equalization, delay, phase,gain,32 sets of data storage, security lock, five-level user management permissions;PCapplication soft-ware USB RS485 interfaceprotocol communication;Operation limits power amplifier output power.
▪Supports 12 channels of analog input and 16 channels of analog output.
▪Can select any number of channels for mixing from the 12 input channels.
▪8 DlP switches on the front panel allow for quick preset switching without the need for computer tuning.
▪Sampling bit rate/frequency 24bit/96KHZ, dynamic range 112db.
▪48-bit floating-point input for digital signal processing.

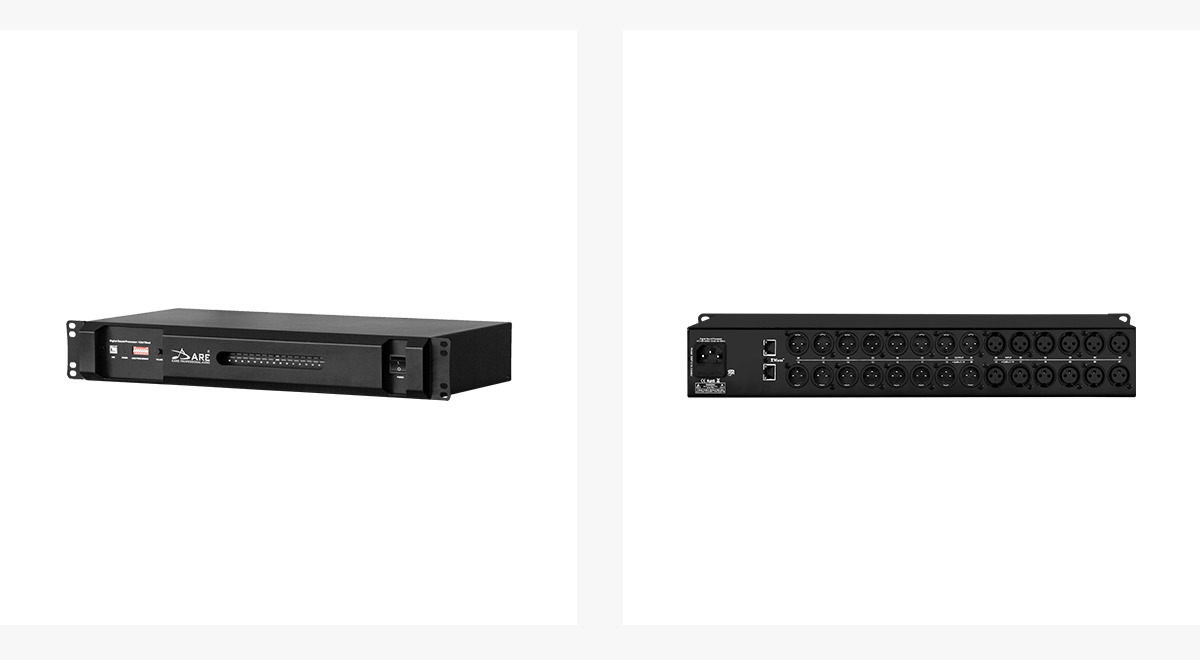

Model DSP-1216
Input Channel 12 Channel
Output Channel 16 Channel
Input Level(dBu) +12dBu
Output Level(dBu) +12dBu
Output Impedance(Ohm) 50 0hm
Total Harmonic Distortion(%) THD<0.003%
Dynamic Range(dB) 112dB
Sample Bit Depth(bit/kHz) 24bit/96kHz
Processing Bit Depth(Bit Float) 32 Bit Float
PC Control interface USB+LAN
Power Source(V) AC90~250V
Power Consumption(W) 10W
Weight(kg) 3kg

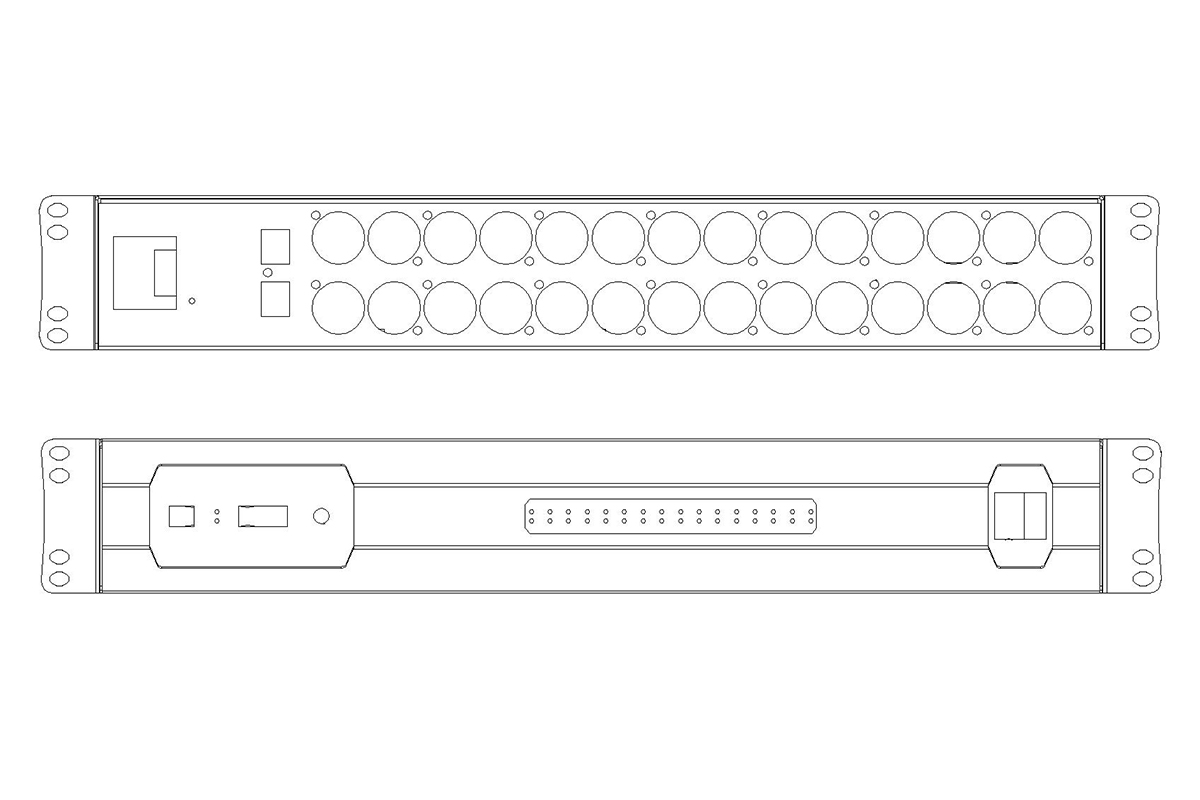

Dimension(mm)(WxHxD) 482x88 x200mm
|
