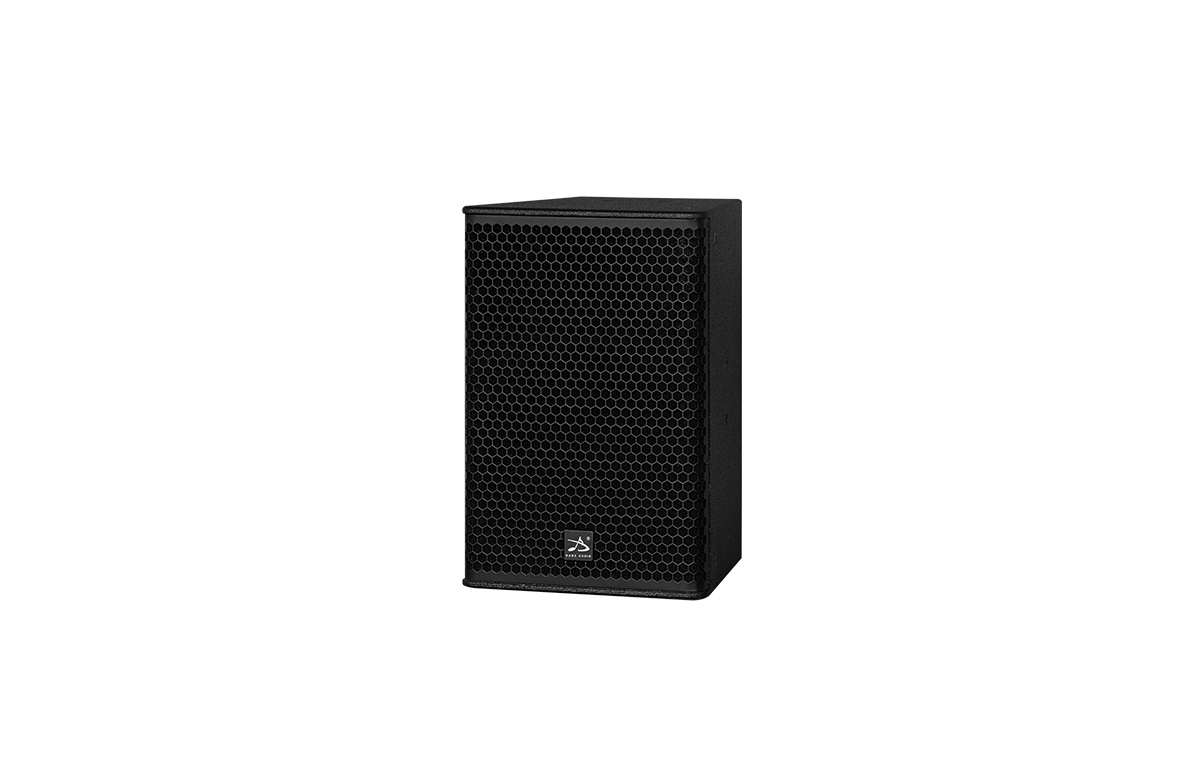

Passive Multipurpose Point Sources

Features

.1low-frequency drivers and 1 high-frequency drivers

.90°symmetrical horizontal coverage range .60°vertical control angle .Multi layer birch plywood .Compact appearance and high efficient performance .Ultra low distortion driving unit

Specifications

Model

P10

P12

P15

P16

Driver

LF:1x10"
HF:1x2"

LF:1x12"
HF:1x2"

LF:1x15"
HF:1x2"

LF:1x15"
HF:1x3"

Impedance
Ohm

9.6
Ohm

6.4
Ohm

4.8
Ohm

4.8
Ohm

Response
Hz

60-20k

50-20k

40-20k

40-20k

Rated power
W

250

400

500

500

Peak Voltage
V

100

100

100

100

Peak Current
A

10

15

20

20

Peak Power
W

1000

1600

2000

2000

Sensitivity
dB/m.w

98

99

100

102

Maximum
SPL dB

128

131

133

135

Cov. Angle
H°×V°

90x60

90x60

90x60

90x10

Dimension
WHD/cm

30x48x33

35x54x39

42x67x46

42x67x48

Weight
Kg

14

18

25

27

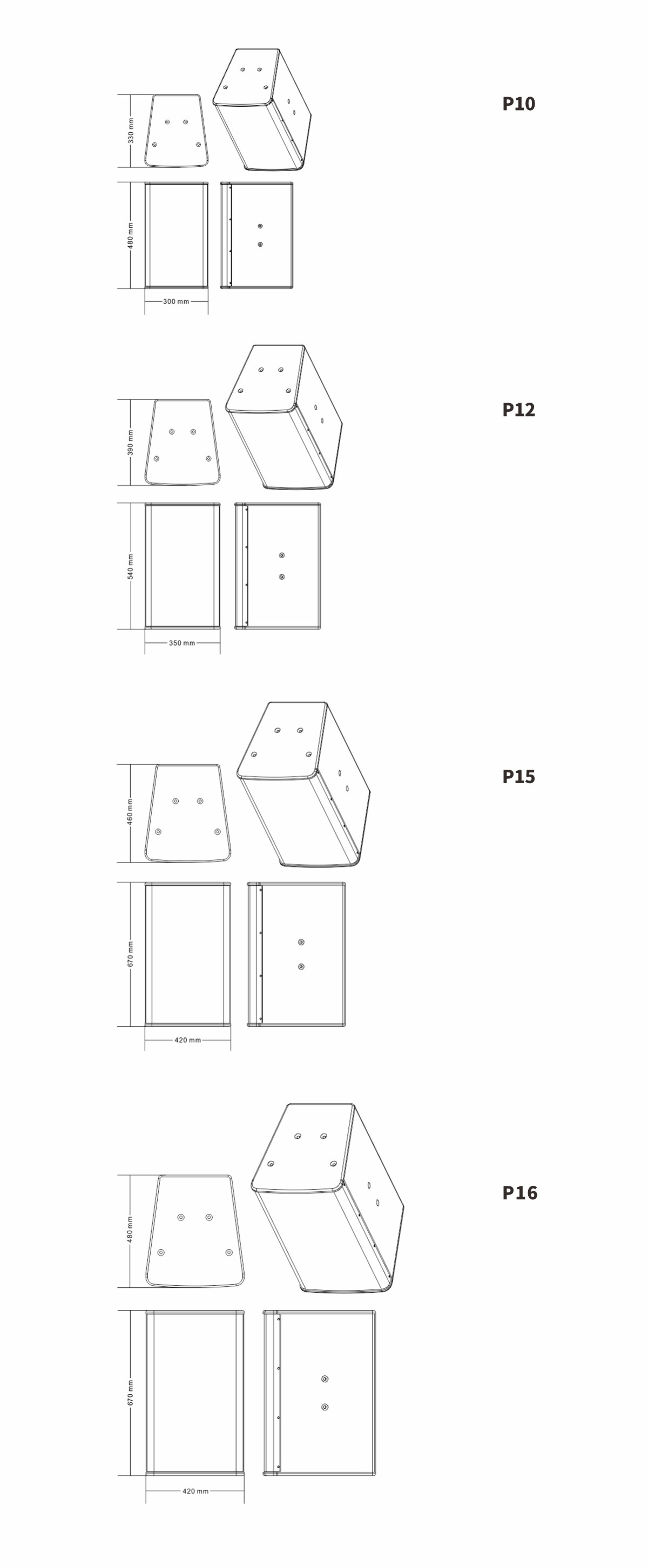

Size
