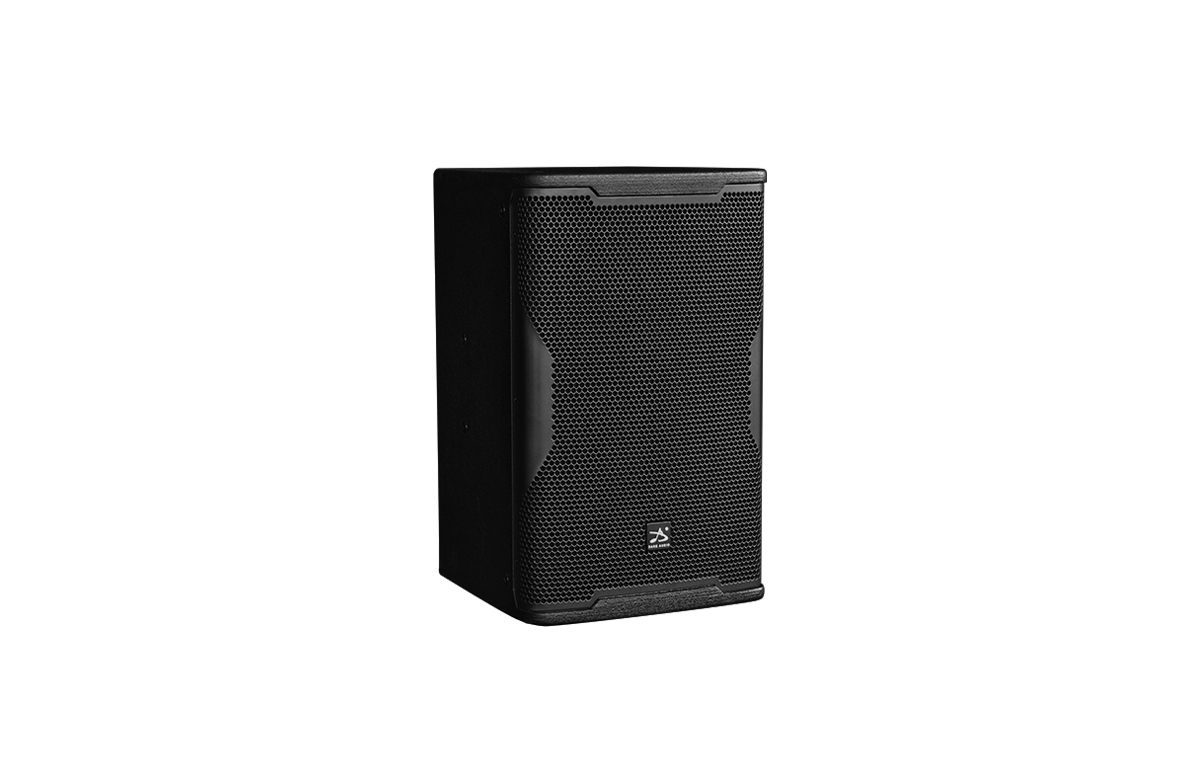

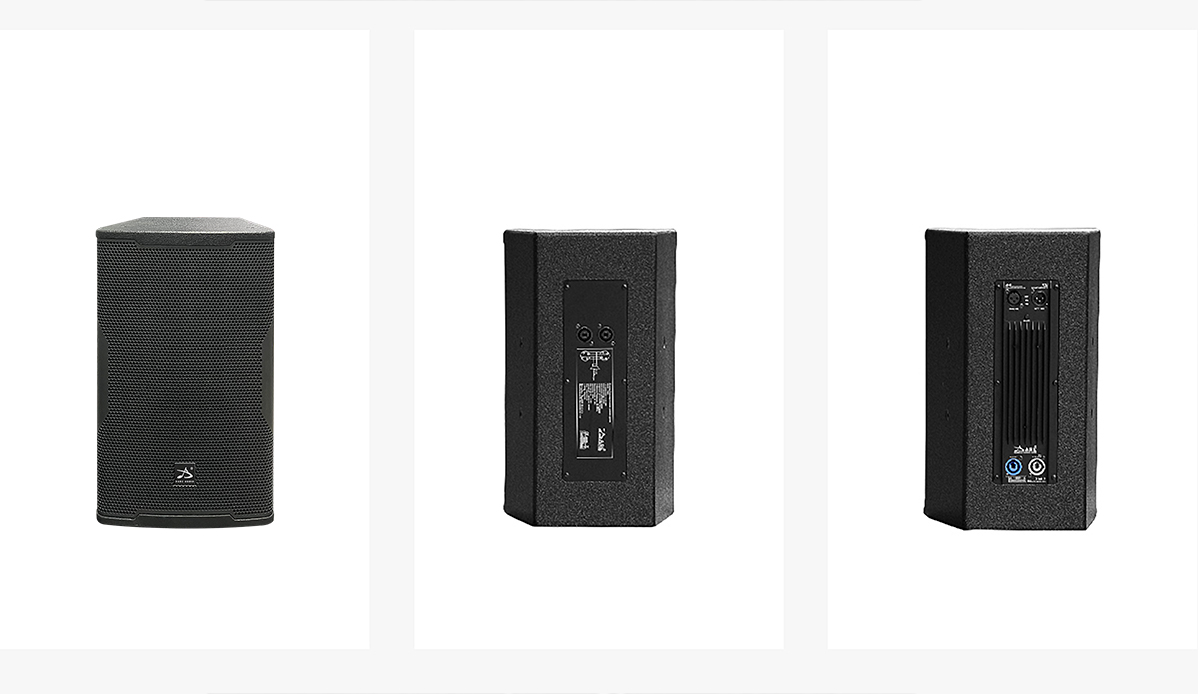

Active/Passive Multipurpose Point Sources

Features

· 1 low-frequency drivers and 1 high-frequency drivers

· 90° symmetrical horizontal coverage range · 60° vertical control angle · Multi layer birch plywood · Compact appearance and high efficient performance

Specifications

Model

　

F10
F10A

F12
F12A

F15
F15A

Driver

　

LF:1x10"
HF:1X2"

LF:1x12"
HF:1X2"

LF:1x15"
HF:1X2"

Impedance
Ohm

　

9.6
Ohm

6.4
Ohm

4.8
Ohm

Response
Hz

　

60-20k

50-20k

40-20k

Rated power
W

　

250

400

500

Peak Voltage
V

　

100

100

100

Peak Current
A

　

10

15

20

Peak Power
W

　

1000

1600

2000

Sensitivity
dB/m.w

　

98

99

100

Maximum
SPL dB

　

128

131

133

Cov. Angle
H°×V°

　

90x60

90x60

90x60

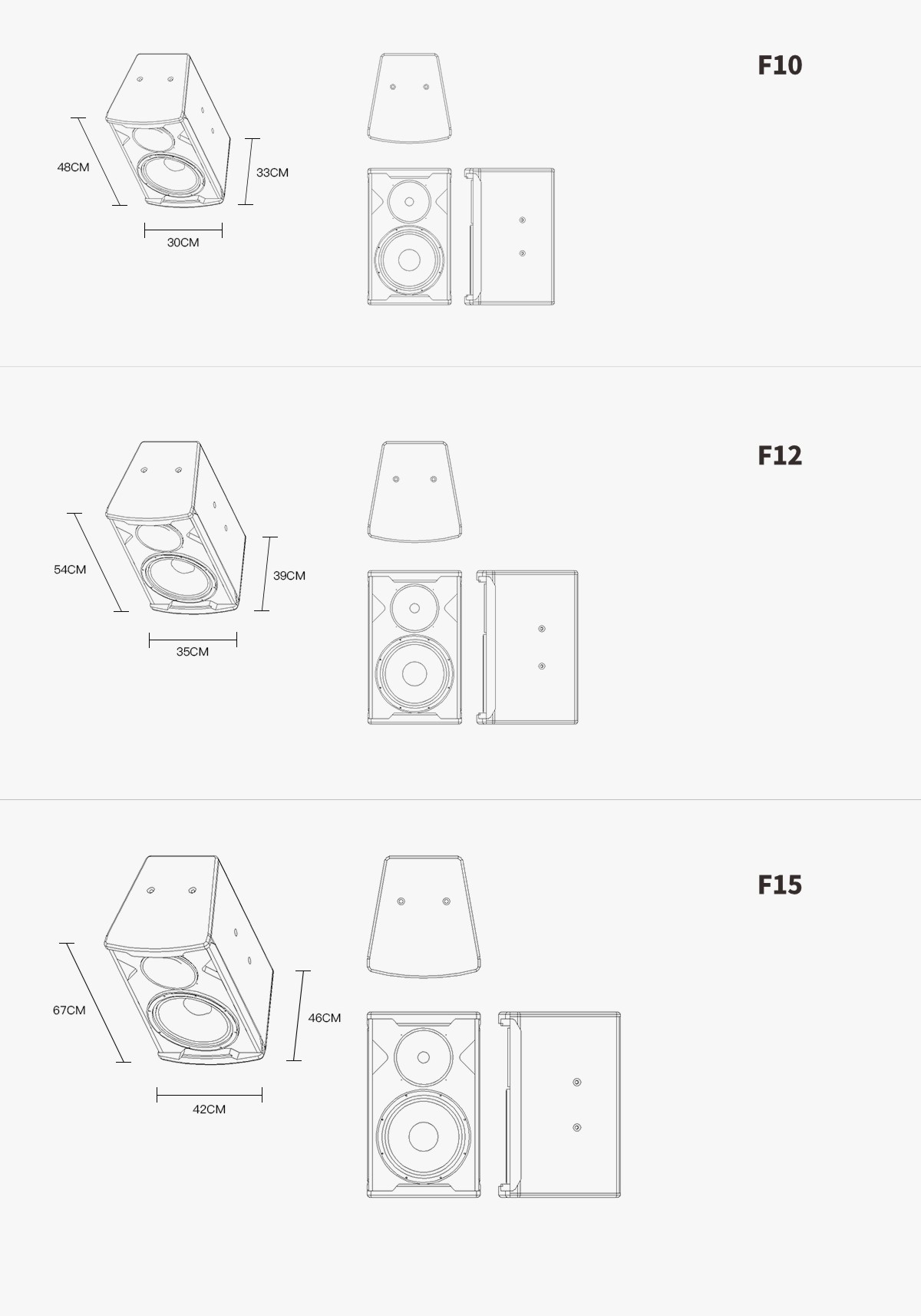

Dimension
WHD/cm

　

30x48x33

35x54x39

42x67x46

Weight
Kg


14

18

25







Size
