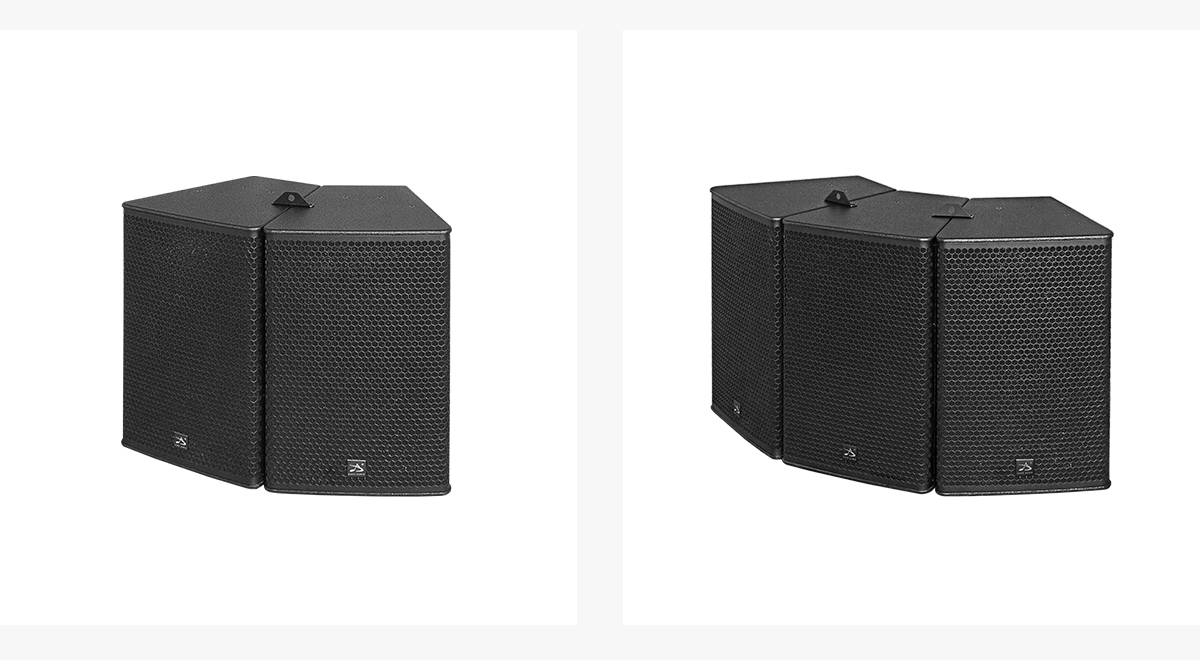

Passive Horizontal Array

Features

· 1 low-frequency drivers and 1 high-frequency drivers · 90"symmetrical horizontal coverage range · 60°vertical control angle. · Multi layer birch plywood · Compact appearance and high efficient performance

· Ultra low distortion driving unit

Specifications

Model

　

HA15

　

HA16

Driver

　

LF:1x15"
HF:1x2"

　

LF:1x15"
HF:1x3"

Impedance
Ohm

　

4.8
Ohm

　

4.8
Ohm

Response
Hz

　

60-20k

　

60-20k

Rated power
W

　

500

　

500

Peak Voltage
V

　

100

　

100

Peak Current
A

　

20

　

20

Peak Power
W

　

2000

　

2000

Sensitivity
dB/m.w

　

100

　

102

Maximum
SPL dB

　

133

　

135

Cov. Angle
H°×V°

　

90x60

　

90x60

Dimension
WHD/cm

　

42x67x48

　

42x67x48

Weight
Kg


25


27

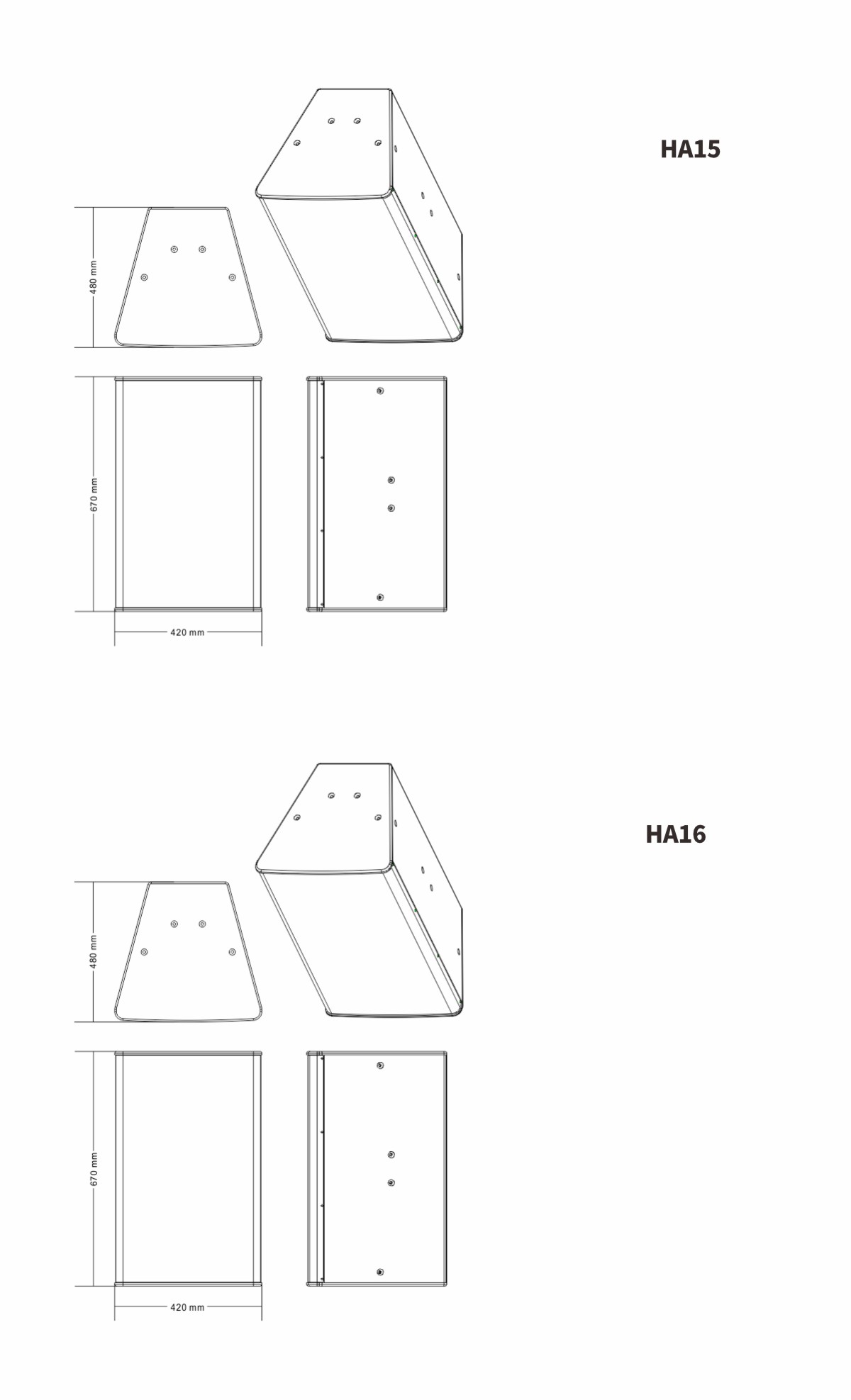

Size
