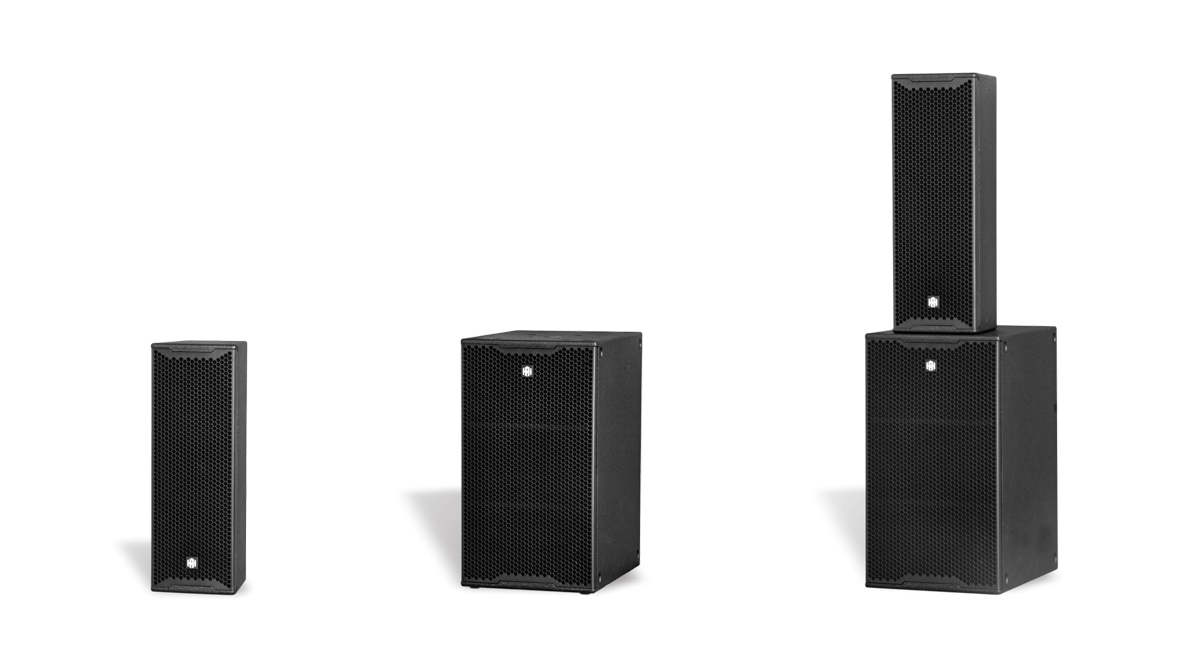

R1 Nearfield Sound Reinforcement System

Features

. Built‑in DSP . Precise Energy Control, Superior Distortion Correction . Magnetics MPP Amplifier Core, ADI SHARC Processor

. Silicon Carbide Power MOSFET

. SH‑N48 Neodymium Magnet + GFTALR Voice Coil . CONEX CF‑Hybrid Composite Cone + TI‑PEEK Tweeter Diaphragm . Polyurea Coating, Multi‑layer Birch Plywood . High‑efficiency Band‑pass Bass

Specifications


Model

　

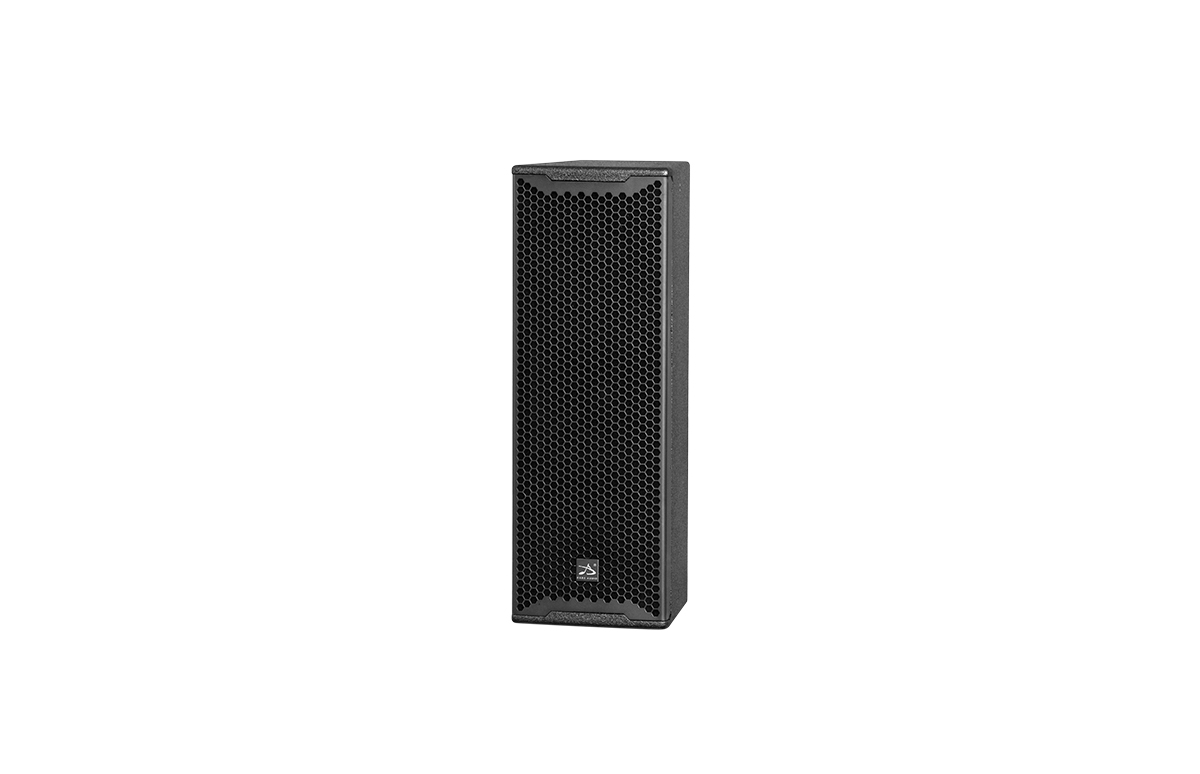

P20

　

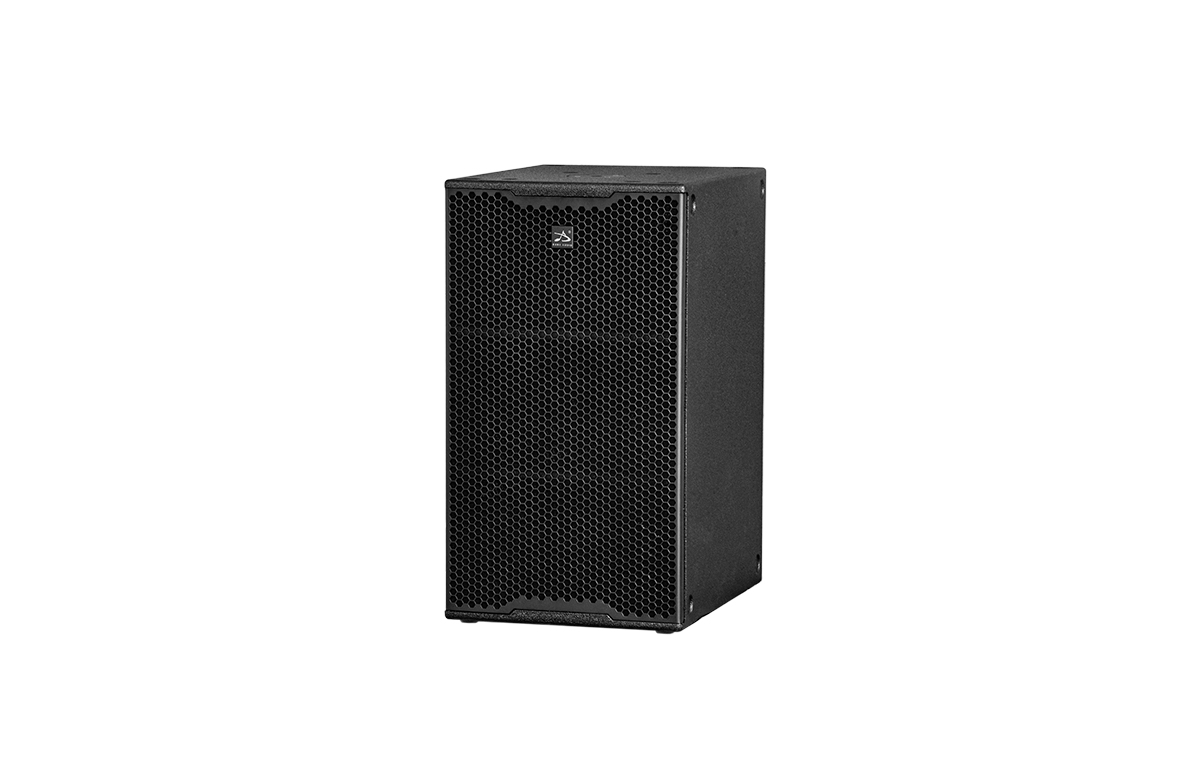

BS15

Driver

　

LF:2x10"
HF:1x3"

　

1x15"

Impedance
Ohm

　

4.8
Ohm

　

3.2
Ohm

Response
Hz

　

40-20k

　

30-90

Rated power
W

　

500

　

500

Peak Voltage
V

　

100

　

100

Peak Current
A

　

20

　

30

Peak Power
W

　

2000

　

2000

Sensitivity
dB/m.w

　

101

　

99

Maximum
SPL dB

　

134

　

132

Cov. Angle
H°×V°

　

90x60

　

--

Dimension
WHD/cm

　

28x80x32

　

45x80x60

Weight
Kg


27


35

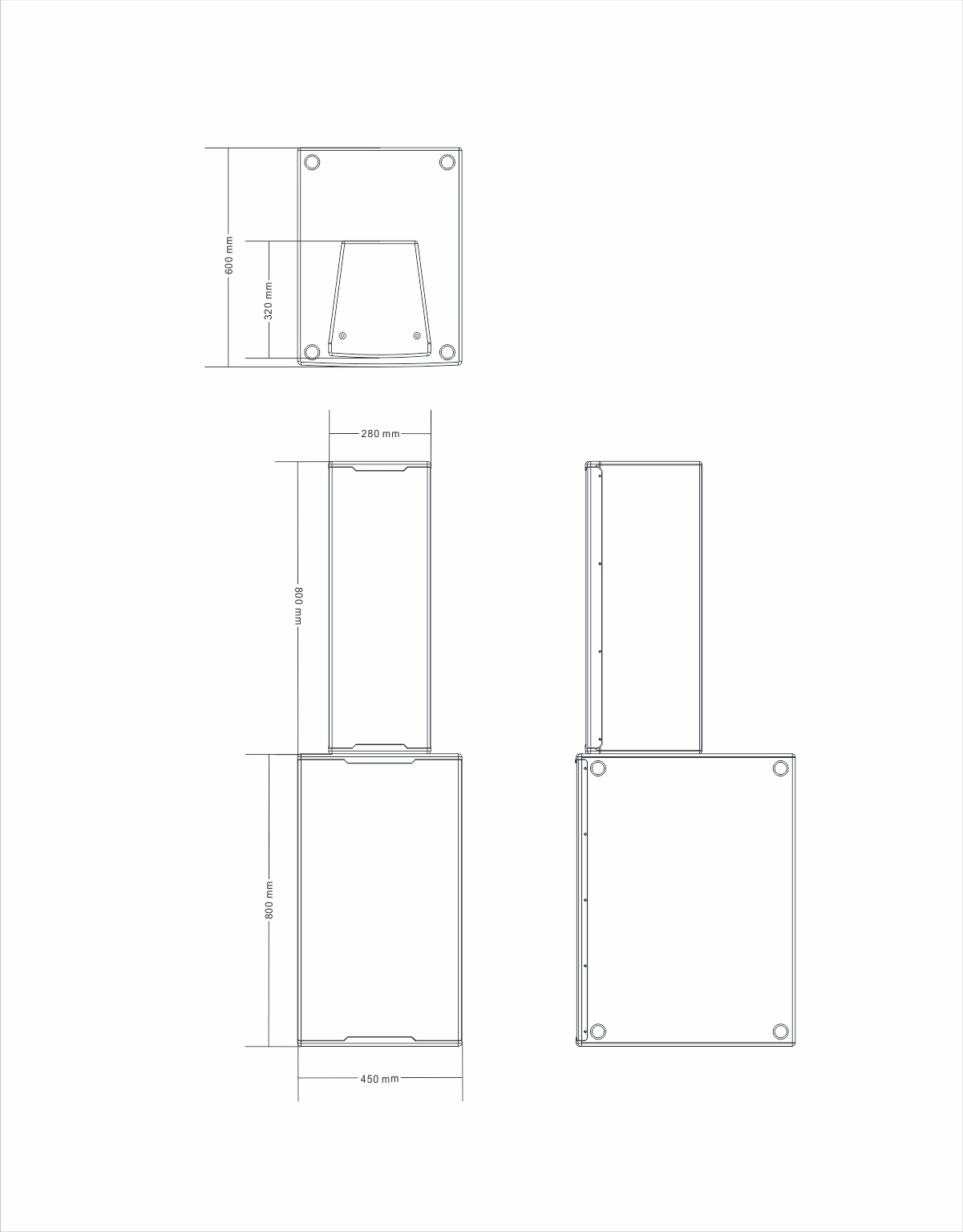

Size
