Features
8x8 Audio Processor With Wireless Audio Transmission
· AT88 supports 8CH analog input and 8CH analog output with all processing and routing function.
· On the internal architecture, any channels of 8 input can be selected for mixing,8 DIP switches can fast preset without connecting to a computer for debugging.
8x8 Audio Processor With CANTE Audio Transmission Protocol
· AT88 supports 8CH analog and Cante outputs.
· On the internal architecture, any channels of 8 input can be selected for mixing, remotely control the power amplifier of Cante speakers , 8 DIP switches can fast preset without connecting to a computer for debugging.
· Bulit in DSP signal processing(gain, EQ, compressor, and delay) .
Model | AT88 |
Input Channel | 8 Channel |
Output Channel | 8 Channel |
Input Level(dBu) | +12dBu |
Output Level(dBu) | +12dBu |
Output Impedance(Ohm) | 50 Ohm |
Total Harmonic Distortion(%) | THD<0.003% |
Dynamic Range(dB) | 112dB |
Sample Bit Depth(bit/kHz) | 24bit/96kHz |
Processing Bit Depth(Bit Float) | 32 Bit Float |
PC Control interface | USB |
Power Source(V) | AC90~250V |
Power Consumption(W) | 10W |
Weight(kg) | 3kg |

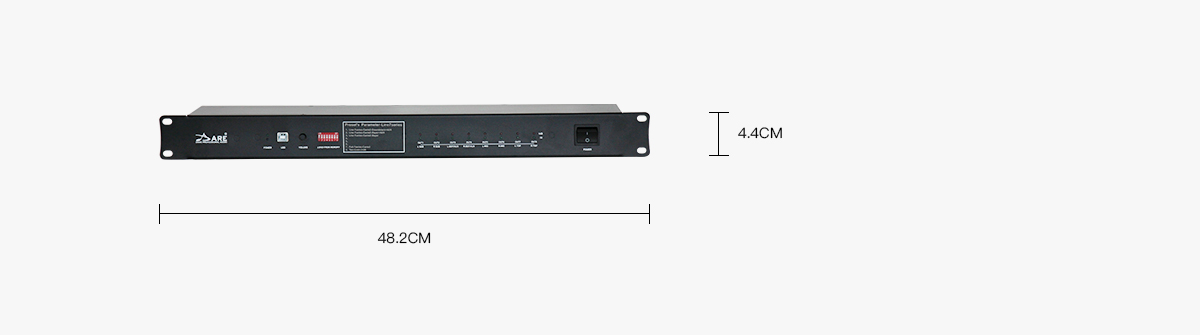

Dimension WHD/mm | 482x44x200 |
