Features

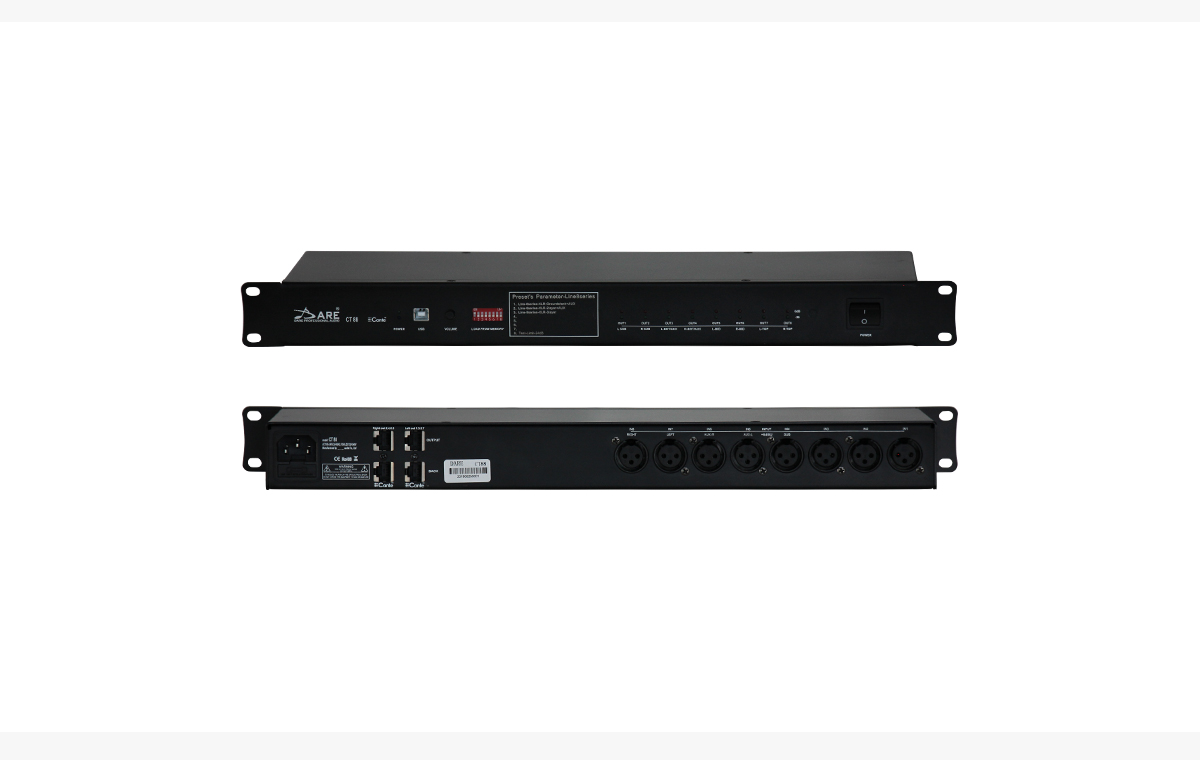

8x8 Audio Processor With CANTE Audio Transmission Protocol
· CT88 supports 8CH analog and Cante outputs.
· On the internal architecture, any channels of 6 input can be selected for mixing, remotely control the power amplifier of Cante speakers , 8 DIP switches can fast preset without connecting to a computer for debugging.
· Bulit in DSP signal processing(gain, EQ, compressor, and delay) .
ADC/DAC | |
Sample Rate/quantization | 24kHz/96bit separate ADC/DAC |
Input/Output method | Differential |
Dynamic Range | TYP>=112dB |
Frequency response | TYP<0.5dB |
Digital Signal Processor | |
Performance | 48bit Dual-core float |
Analog Input | |
Electric Connection | 8XLR connectors at rear panel |
Input impedance | 20kΩ |
Max Output level | +8dBu(2volts) |
Analog Output | |
Electric Connection | 8XLR connectors at rear panel |
Dynamic range | 112dB |
THD | -90dB (0.003%) @1KHz,+12dBV |
Frequency Response | +0/-0.5dB,20Hz to 20kHz |
Crosstalk | -90dB,20Hz to 20kHz |
Output impedance | 50Ω |
Max output level | +8dBu(2volts) |
User Interface | |
PC control interface | With PC software |
Power consumption | <15W |
Weight | 3KG |
Demension | 48.2*16.5*4.4(cm) |
