Features
▪ 48-bit dual-core high-speed DSP; Independent high-perfor-mance AADC&DAC 24-bit/48kHz sampling 12-channel input,noise suppression,source selection 16-channel output, input proportional mixing, crossover,8x11-section parametric equalization, delay, phase,gain,32 sets of data storage, security lock, five-level user management permissions;PCapplication soft-ware USB RS485 interfaceprotocol communication;Operation limits power amplifier output power.
▪Supports 12 channels of analog input and 16 channels of analog output.
▪Can select any number of channels for mixing from the 12 input channels.

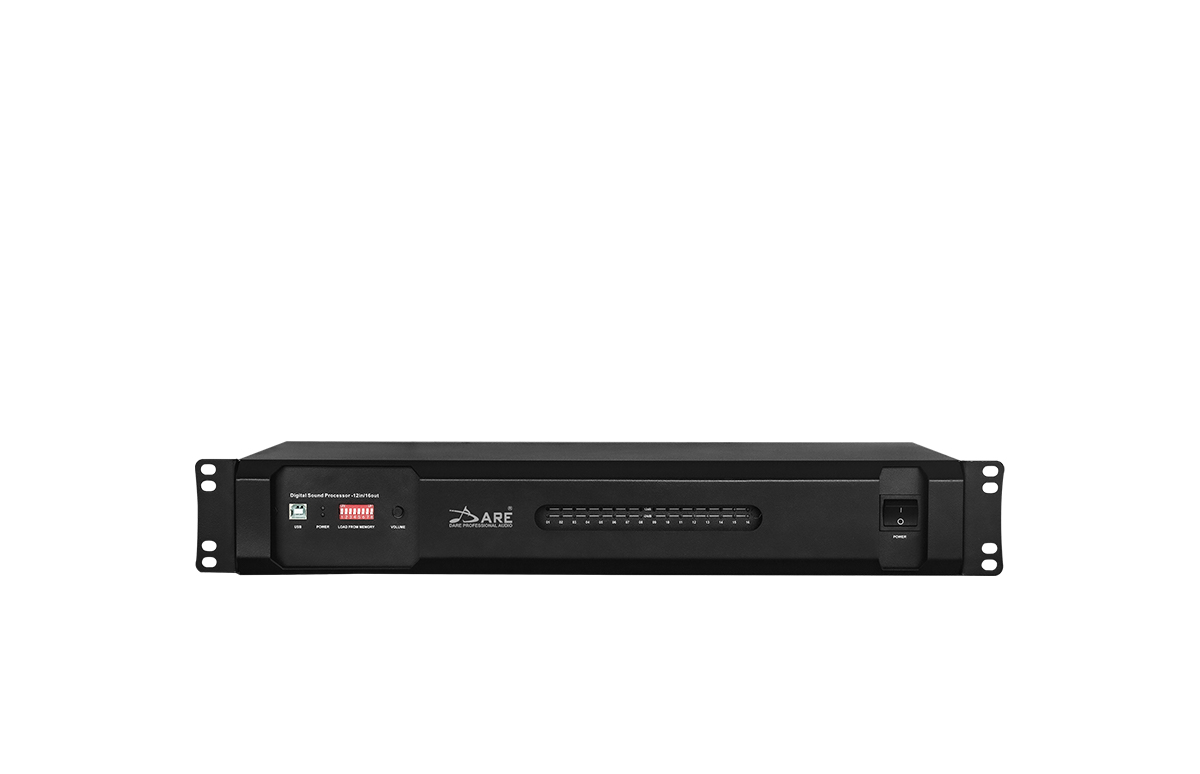

▪8 DlP switches on the front panel allow for quick preset switching without the need for computer tuning.
▪Sampling bit rate/frequency 24bit/96KHZ, dynamic range 112db.
▪48-bit floating-point input for digital signal processing.
Model | DSP-1216 |
Input Channel | 12 Channel |
Output Channel | 16 Channel |
Input Level(dBu) | +12dBu |
Output Level(dBu) | +12dBu |
Output Impedance(Ohm) | 50 Ohm |
Total Harmonic Distortion(%) | THD<0.003% |
Dynamic Range(dB) | 112dB |
Sample Bit Depth(bit/kHz) | 24bit/96kHz |
Processing Bit Depth(Bit Float) | 32 Bit Float |
PC Control interface | USB+LAN |
Power Source(V) | AC90~250V |
Power Consumption(W) | 10W |
Weight(kg) | 3kg |

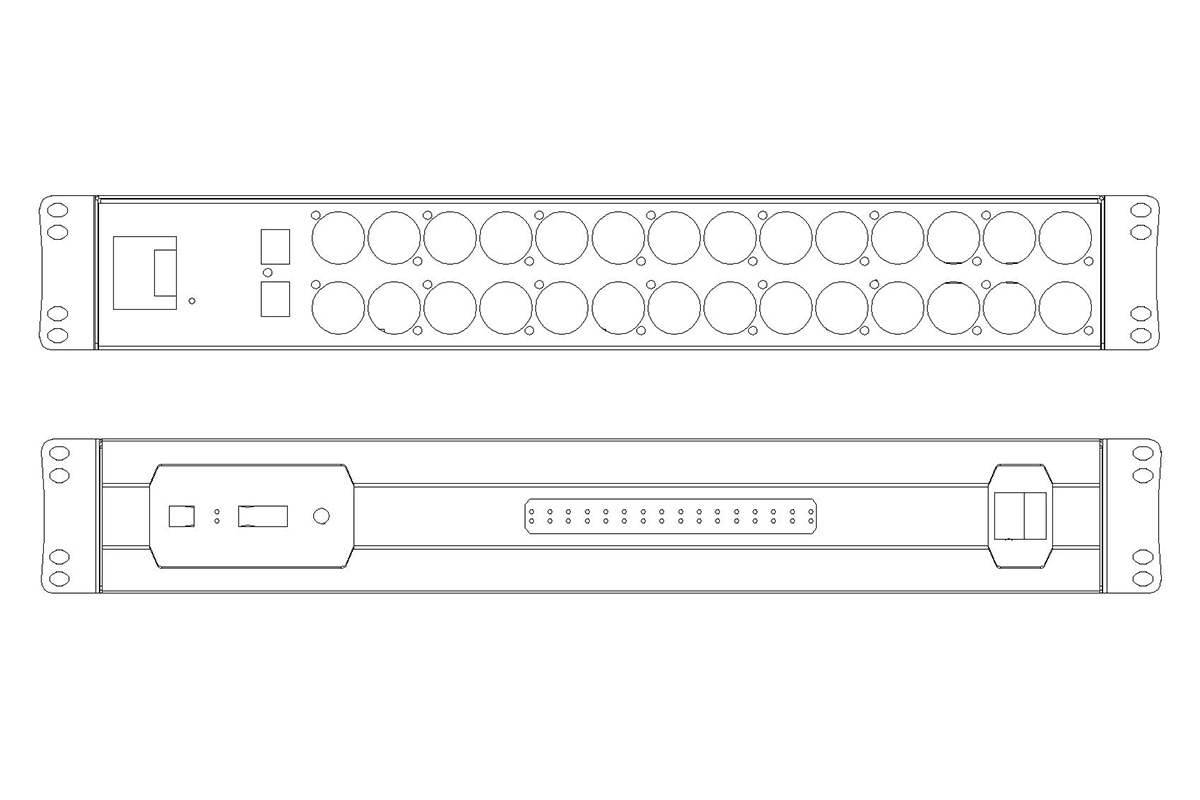

Dimension(mm)(WxHxD) | 482x66x200mm |
